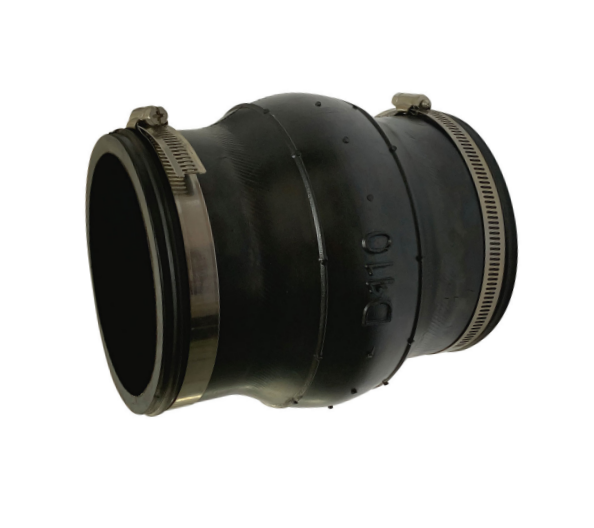

Dn110 Pvc Pipe Flexible Coupling Clamp Type Rubber Expansion Joint for Plastic Pipes
Clamp Type Rubber Expansion Joints are flexible connectors made of high-quality rubber, designed to absorb vibration, noise, thermal expansion, and minor misalignments in piping systems.
Unlike flange-type joints, clamp type joints are secured using stainless steel clamps, making installation and maintenance fast and easy without the need for bolt alignment or flange drilling.
Key Features:
Quick Installation: Uses clamp rings instead of bolted flanges, saving time and labor.
Flexible Movement: Allows axial, lateral, and angular movements.
Vibration & Noise Reduction: Excellent dampening for mechanical vibrations and noise transmission.
Corrosion Resistant: Available in EPDM, NBR, or Neoprene rubber with stainless steel clamps.
Leak-Proof Seal: Tight and secure sealing ensures reliable performance under pressure.
Compact Design: Space-saving design ideal for compact or mobile installations.
Technical Parameters
| Nominal diameter | Length (mm) | Axial displacement(mm) | Horizontal displacement(mm) | Deflection angle |
| DN | O.D. of pipe(mm) | Elongation | Compression |
| 50 | 60.3 | 180 | 20 | 25 | 15 | 20° |
| 65 | 76 | 180 | 20 | 25 | 15 | 20° |
| 80 | 89 | 180 | 20 | 25 | 15 | 20° |
| 100 | 114 | 180 | 20 | 25 | 15 | 20° |
| 125 | 133 | 180 | 20 | 25 | 15 | 20° |
| 150 | 159 | 180 | 20 | 25 | 15 | 15° |
| 200 | 200 | 200 | 20 | 25 | 15 | 10° |
| 250 | 273 | 200 | 20 | 25 | 15 | 10° |
| 300 | 325 | 200 | 20 | 25 | 15 | 8° |
| 350 | 377 | 200 | 20 | 25 | 15 | 8° |
| 400 | 426 | 200 | 20 | 25 | 15 | 8° |
| 500 | 530 | 200 | 20 | 25 | 22 | 6° |
| 600 | 630 | 200 | 20 | 25 | 15 | 6° |
Note:The range of size from DN50 to DN600 are all available.
If you need customization, please contact us and provide the data.
Sphere Inventory
Industry Applications
HVAC Industry
“Flexible enough to fit in compact HVAC pipelines, this joint eliminates vibration from chillers and pumps – ensuring quieter operation and longer equipment life.”
Water Treatment
“EPDM clamp joints are ideal for water filtration systems and pump outlets – offering corrosion resistance and leak-free performance.”
Marine & Shipbuilding
“Clamp-on rubber bellows absorb engine vibrations and pipe movements on ships, while stainless steel clamps resist saltwater corrosion.”
Chemical & Oil
“NBR clamp joints provide a safe and flexible connection in chemical and oil pipelines where flanged connections are impractical.”
Installation Instructions:
Ensure pipe ends are clean and aligned.
Insert the rubber joint between the pipe ends.
Place the stainless clamps around both ends of the joint.
Tighten clamps evenly using a screwdriver or torque wrench.
Re-check clamp tightness after 24 hours of operation.
✅ Pro Tip:
For high-pressure or vertical installations, use control rods or limiters to prevent axial pull-out.
FAQ
Q1: Can this joint be used for hot water or steam?
A : Yes, EPDM material supports up to 120°C. For steam applications, please consult us for a special rubber formulation.
Q2: Is flange welding required?
A : No. This clamp-type joint is flange-free and requires only stainless steel clamps for sealing.
Q3: Can I use it in chemical pipelines?
A : NBR is suitable for oil and some chemicals. For highly corrosive fluids, we recommend consulting us for fluorine-lined options.
Q4: How long is the service life?
A : Typically 5–10 years under normal use. Regular inspection is recommended for long-term reliability.
Q5: Do you offer OEM or custom services?
A : Yes! We support OEM branding, custom sizes, materials, and packaging.
